EVR II ED 10X34

Overview

Overview

The EVR II binoculars take the exceptional optical performance of the first-generation EVR and elevate it with a significantly wider field of view. This enhanced field of view allows you to locate your target more quickly, observe it in greater detail, and enjoy optimal brightness with minimal distortion.

Designed with portability and comfort in mind, the EVR II is lighter and more compact, reducing shoulder and neck strain while freeing up space in your bag.

Built to withstand the elements, its IPX-7 waterproof rating ensures reliable protection against water immersion for up to 30 minutes at a depth of 1 meter, making it your go-to companion for all weather conditions.

Features

Features

  • Ultra-Compact & Wide-Angle

    • Wide angle design (8.3° & 6.7° for 8x and 10x) while maintaining edge to edge clarity.

    • 93% total light transmission.

  • Ultra-Close Focus + Short Axis Design

    • Close focus of up to 2 meters, it’s not only good for bird watching but perfect for viewing insects and butterflies as well.

    • Say goodbye to shoulder and neck pain and hello to extra bag space thanks to the smaller and lighter design.

  • IPX7 waterproof and fog-proof, nitrogen-purged
  • Accessorized for Your Convenience

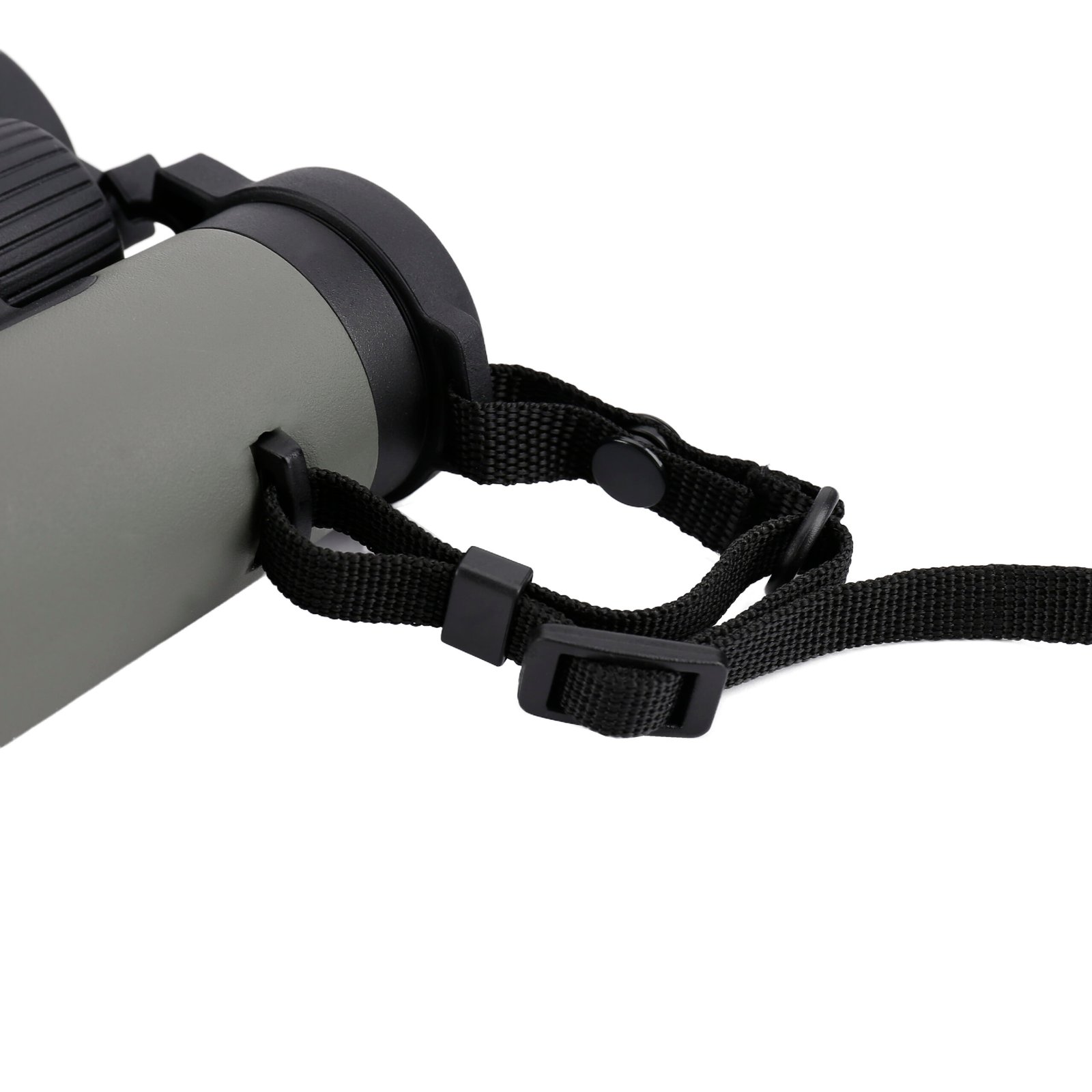

    • Pre-installed strap and harness-compatible buckle, ready to use right out of the box.
    • Twist-up eye cups, ocular lens caps and objective lens caps all removable.
  • Anti-tangling strap design

Technical Specification

Technical Specification

OPTICAL DATA

Magnification

10X

Objective Diameter (mm)

34

Eye relief (mm)

16.3

Exit pupil (mm)

3.4

Close focusing distance (m)

2

Interpupillary distance (mm)

56-76

Dioptric compensation (dpt)

+/- 4.0

Coating

Fully multi-coated

Focusing system

Center Focus

Field of view (m @ 1000m)

118

Field of view (degree)

6.7

ED Glass

Yes

Prism

Bak4 w/Phase coating+Dielectric coating

MECHANICAL DATA

Weight (g)

540

Weight (oz)

19.08

Eyecup

Removable twist-up eyecup

Housing

Magnesium aluminum alloy

Dimension (WXHXD mm)

126 X 126 X 45

ENVIRONMENT DATA

Functional temperature

-10 ~ 50 degree celcius

Storage temperature

-10 ~ 50 degree celcius

Submersion tightness

IPX7

DELIVERY INCLUDE

Standard Accessories

Neoprene neck strap, Ocular protective cap, Objective detachable stay-on protective cap,Water-resistant Protective Pouch
